A Framework to Test WiFi Performance of Handheld Devices in Retail Environment

Technology has almost always had a positive impact in everyone’s life. Retail stores have been embracing technology not just to improve the customer experience but also to optimize the operational efficiency and improve the employee work experience. Handheld devices have played a major role in this regard. Be it for inventory management or to help customers checkout items without having to wait in the queue at the register or to function as digital badges for employees, handheld devices play a prominent role in the retail sector. This blog post provides a framework to setup and perform device testing that can help in evaluating the performance on WiFi. However, this piece does not venture into the details of any specific client issues. The post is divided into three sections.

Setting Up the Test Environment

Ideally, any client device testing needs to be performed in production environment where it is intended to be used. If the handhelds are meant to be used inside of store, the testing also have to be performed in an actual store. Some handhelds are designed for outdoor applications. Testing for such devices also needs to be done outdoors accordingly. This is my personal choice for device performance testing. But if that is not feasible, setting up a lab environment that closely replicates the store environment is critical. Most retail companies have mockup stores to demo emerging technologies and such store setup is ideal for a lab. If there are no budget constraints, the entire mockup store can be used as a lab environment. But, that is not always the case. Plan to setup the lab environment with at least four access points. If there are multiple vendor solutions across your retail chain, run multiple cables to each location and install multiple APs next each other (yes, this is bad unless there is only one active network for each iteration of testing).  For example, if you have Cisco 2800s in some stores and Mist AP41s in others, you can run two cables to each location and install the APs next to each other. If you would like to test in Cisco environment, you can shut down the Mist APs and vice versa. The AP placement needs to be identical to that of a store environment.  If mockup store is not available, then setting up APs in the office and replicating placement in stores would be the last option. In any case, we will require at least four APs.

I will be using the following setup for this blog post purposes.

This is a mockup floor plan with resembling AP placement of a store in production. Notice the channel planning scheme contains one channel from each of U-NII-1, U-NII-2, U-NII-2e and U-NII-3 bands in 5 GHz. The benefit of using four access points with the channel scheme is it would provide insights into the client device’s operational capabilities in each of these bands. Adjust the power levels to be able to produce roaming instances during the process.

Tools and Applications Required

Now that we have a test environment set up, next step would be to identify what features we want to test in the process. One way to determine the device capabilities is going through the association request but a more efficient way is to use the profile application on the WLAN Pi. Instructions on how to use the application can be found here. This application provides client reports of the following format and lists all the capabilities of the devices.


Client capabilities report – Client MAC: #MACHere

(OUI manufacturer lookup: #Namehere)


802.11k                   Supported

802.11r                   Supported

802.11v                   Supported

802.11w                  Not reported

802.11n                   Supported (2ss)

802.11ac                 Supported (2ss), SU BF supported, MU BF not supported

802.11ax_draft      Not Supported

Max_Power            22 dBm

Min_Power            8 dBm

Supported_Channels   36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165

Packet capture tool like Omnipeek or Commview with capabilities of capturing packets on multiple adapters is required. The choice of number of adapters depends on the WLAN. If it is 5 GHz only network, a set of four adapters can be sufficient. If the WLAN is dual-band, a minimum of seven adapters are required. Three adapters will be capturing on each of channels 1, 6 and 11 and the remaining four adapters on channels configured on the APs (36, 64, 100 and 149 in this case). I use Omnipeek with Netgear A6210 adapters.

Multi ping tools like PingPlotter can be very handy to setup continuous pings to the client devices and save data for offline analysis. PingPlotter does a great job of representing ping responses on time axis and traceroute results.

A mobile cart or shopping cart can help in moving the setup from one location to other.

The last of the tools depend on the type of client device being tested. A lot of handheld devices used in retail have Android OS which supports a multitude of WiFi diagnostic apps and logging features. Any diagnostics app like the one below showing RSSI continuously can help in understanding the device performance.

Testing Procedure

After determining the device capabilities from WLAN Pi profiler, we need to identify the WLAN features currently in use. For example, although the client device supports all 802.11k/v/r amendments, all of them may not be enabled on the network. So, it is important to identify the list that we can test and strategize the testing process. Any procedure to evaluate the device performance on WLANs need to be able determine the effectiveness of the following events at a minimum

  • Probing
  • Authentication
  • Association

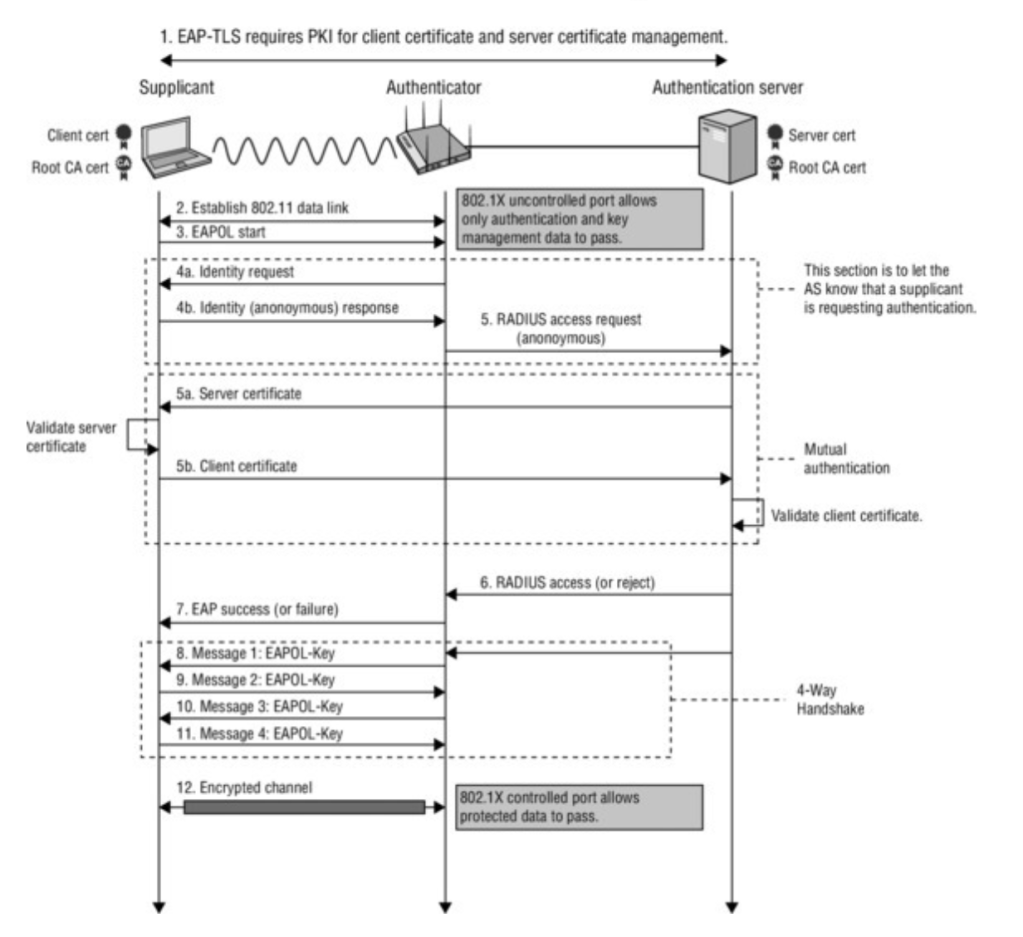

  • 802.1X EAP Exchange (if the WLAN is configured for it)
  • 4-Way Handshake
  • Power save (depending on the support)
  • Roaming – 802.11k/v/r (depending on the support)

While events from probing to 4-way handshake are common to any client device, handheld devices need special attention when it comes to power save and roaming behavior. Every manufacturer has different drivers and these mechanisms determine the device performance on WiFi to a large extent. The process defined below helps in gathering data required to determine this.

  • Start at TEST_AP01. Set up Omnipeek with adapters capturing on all 5 GHz channels assigned to the APs along with additional adapters on channels 1,6 and 11 in case of dual band WLANs. Do not configure any mac address based filters for capturing the packets. I recommend using a mobile cart or shopping cart for the laptop setup.
  • Connect the client device to the WLAN and note the IP address. Initiate a continuous ping to the client device from PingPlotter.
  • Turn off WiFi on client device and initiate packet captures on AP ethernet ports.
  • Make sure the adapters are about four to five feet away from the client device to avoid any sideband effects on the capture.  Initiate capturing packets on Omnipeek and turn on WiFi adapter on client device.
  • Confirm the device received same IP as before and continuous ping on PingPlotter is working.
  • Follow a path from one AP to the other similar to the one shown below. Open the diagnostics app if available and keep notes on RSSI values especially when a roam is observed.
  • Once you reach back to TEST_AP01 location, stop the continuous ping on PingPlotter and all the captures on Omnipeek and AP ethernet interfaces.  Export the files with any naming convention of your choice.
  • Repeat the same process without a continuous ping for iteration 2. This iteration is to collect data when the device does not have active traffic.

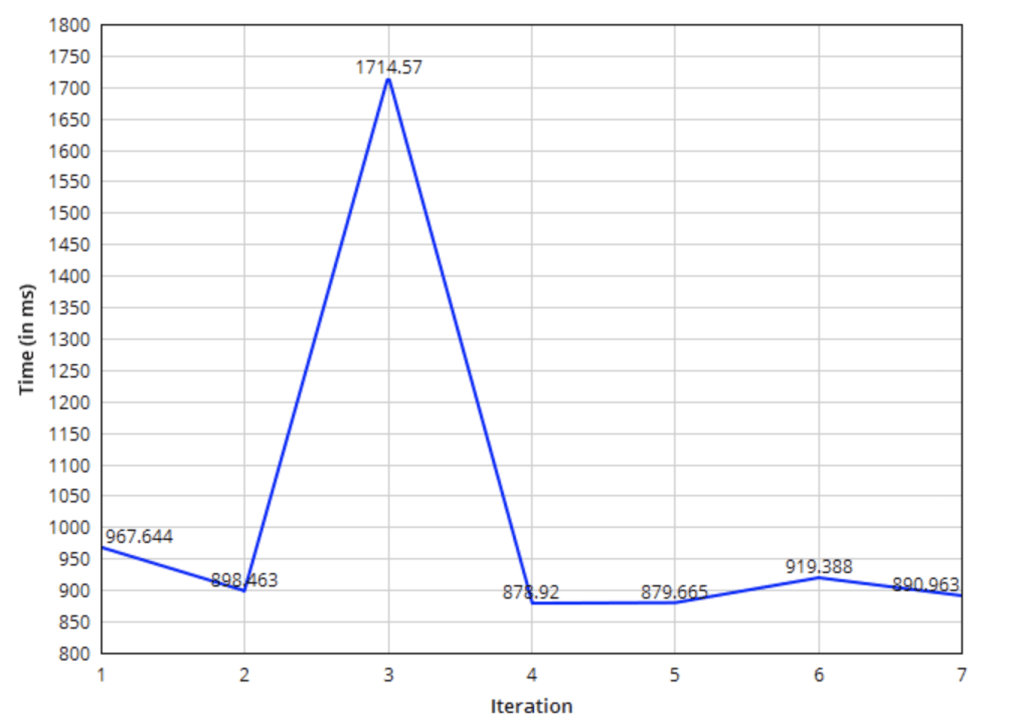

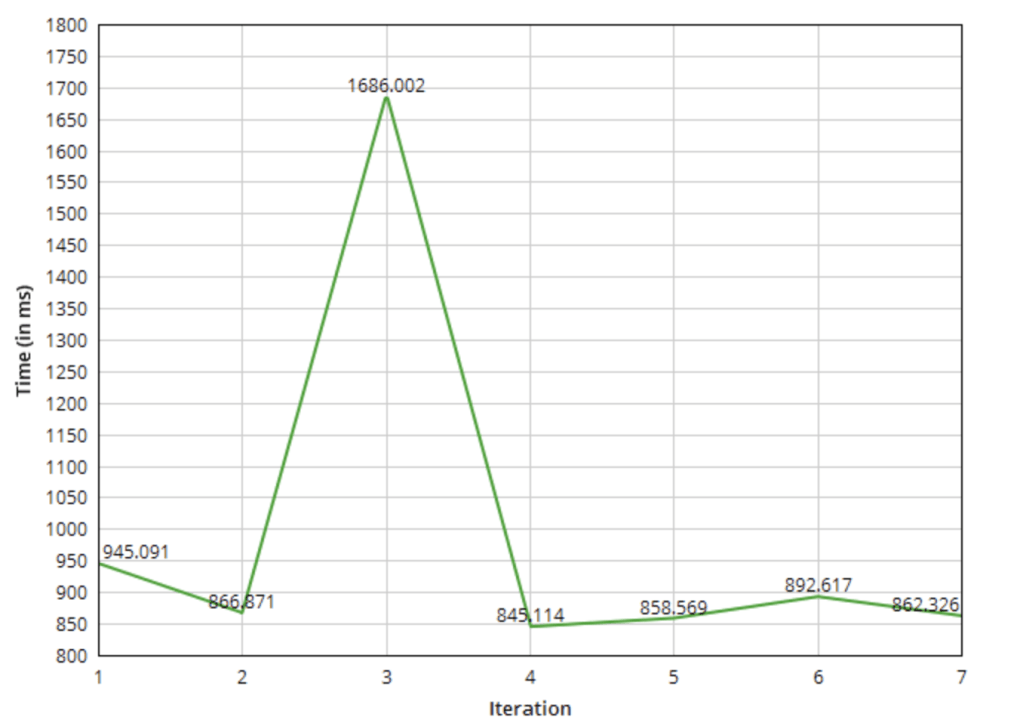

At the end of both iterations, we have gathered most of the data required for analysis that can help in determining the client device behavior in multiple aspects like

  • Probing behavior of client device (sequential, preference of non DFS vs DFS, selective when using 802.11k)
  • Association, Authentication, Re Association and 4 Way handshake

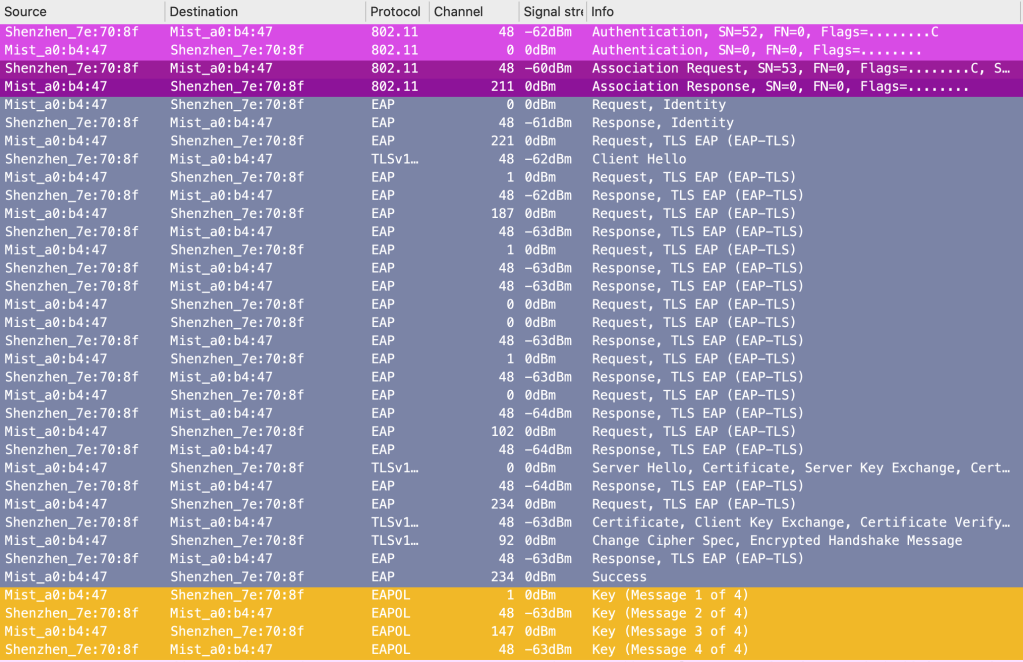

  • 802.1X process from captures on Omnipeek along with AP ethernet interfaces
  • Band preference (2.4 GHz vs 5 GHz)

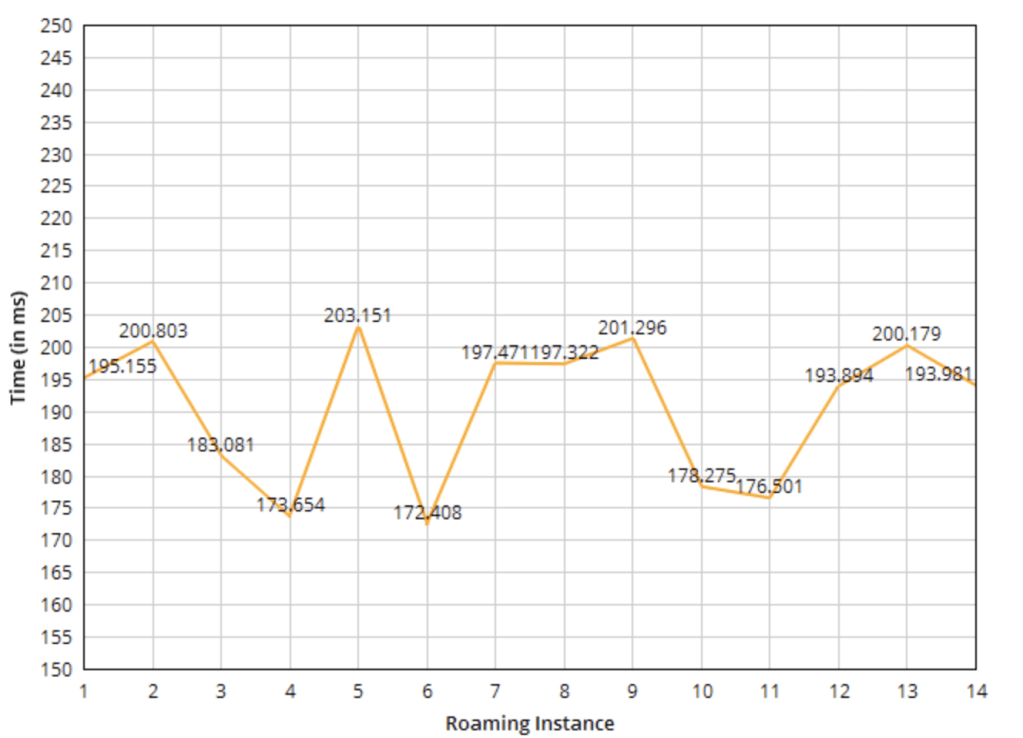

  • Roaming performance between channels belonging to U-NII-1, U-NII-2 , U-NII-2e and U-NII-3 bands
  • Device power save behavior (with traffic in iteration 1 vs without traffic in iteration 2)
  • RSSI thresholds at which roaming occurred from the diagnostics tool. In the absence of such tools, RSSI values on Omnipeek can help in estimating the threshold to initiate probing to roam.
  • Ping losses and timestamps from PingPlotter to correlate with roaming instances or to detect power save issues.

The tools required and guidelines provided are intended to help evaluate the device performance with minimum inventory in the best way possible. Having more access points and more adapters for packet captures will certainly help in gathering more data which will be very useful for analysis.

The Case for Directional Antenna in Modern Enterprises

Every enterprise going through a real estate or technology refresh is thinking about ways to enhance the work experience and stimulate the creativity and collaboration of its employees by modernizing the office spaces. One of the key components of modern enterprise space is the ability to provide ubiquitous wireless connectivity that is reliable in every corner of the office. All wireless office spaces or in other words spaces with zero visible ethernet cables have gained momentum in the recent years and some of the implementations I worked on taught me the advantages of deploying directional antennae in place of APs with traditional omnidirectional antennae. In this blog, I will cover a few benefits that could justify the additional costs involved in deploying APs with external directional antennae.

Most modern enterprises have an open office design which is bad for WiFi in terms of Co-Channel interference. Without walls, it is not possible to contain signal from omnidirectional antennae and the client device tends to stick to the associated AP longer than ideal. Following is the coverage from a Mist AP41 with integrated omni directional antennae with EIRP at 14 dBm.

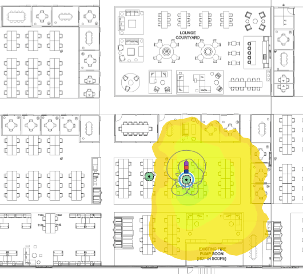

The following is the coverage from a Mist AP41E with AccelTex antennae (ATS-OHDP-245-46-4) having the same EIRP.

The use of directional antennae restricts the signal from propagating farther and creates smaller coverage cells which are critical for high performance in an open office environment. Smaller cells help reduce the co-channel interference especially in large open high-density offices where the number of APs exceed 25 (assuming you are using all 25 channels in 5 GHz). If voice applications are used on the wireless network, we need to avoid using some of the DFS channel which will further decrease the flexibility in channel assignment

Optimal Roaming: One of the top things in the wish list of every Wi-Fi engineer is to be able to have control over client device roaming. Directional antennae although do not provide full control over roaming, the smaller cells designed will encourage client devices more often than omnidirectional APs to be always connected to the closest AP.

Flexibility with channel width assignment: Some of the teams require frequent file transfers and the throughput achieved on 20 MHz channels in most cases is less than desirable. In such areas, 40 MHz channels can be configured without having to worry about the channel reuse patterns.

Aesthetics: Every building architect wants to have a WiFi network with highest performance from invisible APs (of course installed above the ceiling). I always found concealed antennae from vendors like AccelTex and Ventev as a great solution to place APs above the ceiling and install the aesthetically pleasing antennae below the ceiling.

Most modern enterprises need to be treated as high density environments. Granted they are not super dense as an arena or stadium but taking into consideration the business criticality of applications, reliability that needs to be delivered and the increased density of user devices, deploying directional antennae can yield the best results. Depending on the number of users and per user throughput SLA requirement, directional antennae with appropriate beam widths can be chosen to come up with an optimal coverage and capacity design.

Hands-On Deep Dive into Opportunistic Key Caching

Opportunistic key caching (OKC) is a fast secure roaming technique that leverages sharing the Pairwise Master Key (PMK) across access points that are under an administrative control. After a client authenticates to an access point and derives a PMK, the access point shares this PMK along with a PMKID with other access points. Protocols defined to share this information between access points are often proprietary. The PMKID is a result of hash function  on the PMK , the client MAC address and the authenticator address. The PMKID allows the creation of unique security associations between the devices.


In this demonstration, the client device (windows 10 machine) roams from AP1 to AP2. Both access points are from Aerohive and placed optimally to encourage  client roaming.  The mac address of client device is 0028:f8ab:cb51 and the authenticator address (BSSID) of AP1 is c413:e23d:40e5 and of AP2 is c413:e23d:8965. The following is a step by step procedure to demonstrate the process of roaming using OKC.

Step 1. The client connects to AP1 and uses the full 802.1X/EAP process to derive a PMK and PMKID #1.

Init AP1.PNG

Step 2: AP1 communicates this information to AP2 over LAN using proprietary protocols.

Init AP2

Notice the hop count is 0 on AP1 and 1 on AP2 because the device is initially connected to AP1.

Step 3: When the client device moves away from AP1 and closer to AP2, the client device calculates a new PMKID #2 using the PMK along with the AP2’s address and client mac address. This information in sent in the reassociation request packet.

Roaming process

The PMKID #2 can be found under the RSN information tag of the reassociation request packet.

RSN tag

Step 4: AP2 calculates the PMKID#2 from the client mac address information received through the reassociation request. If the PMKID #2 matches, then reauthentication is not required and AP2 sends a success code on the reassociation response. At this stage, AP2 has the new PMKID#2 and the PMK which will allow for a unique security association.

Post AP12.PNG

Step 5: The encryption keys are generated through the 4-way handshake after the re-association process and the client device sends a dissociation frame to AP1.

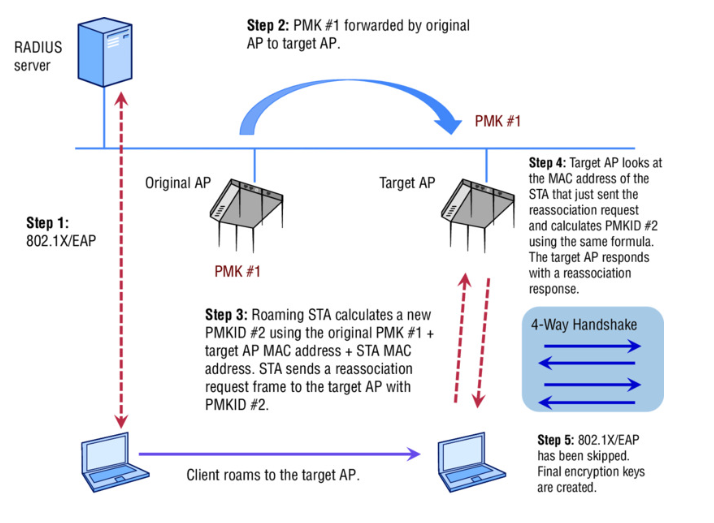

This procedure is summarized in the following picture.

OKC Roaming

OKC eliminates the need for 802.1X/EAP process resulting in a faster handoff between the access points. Time analysis of this demonstration indicated that it took only 2.96 milli seconds after the reassociation response to generate the keys while the initial authentication to AP1 using entire 802.1X/EAP process took about 93.87 milli seconds to generate keys after association phase.


  1. CWSP Study Guide  by David A Coleman, David A. Westcott and Bryan Harkins
  2. Packet captures available for download here.
